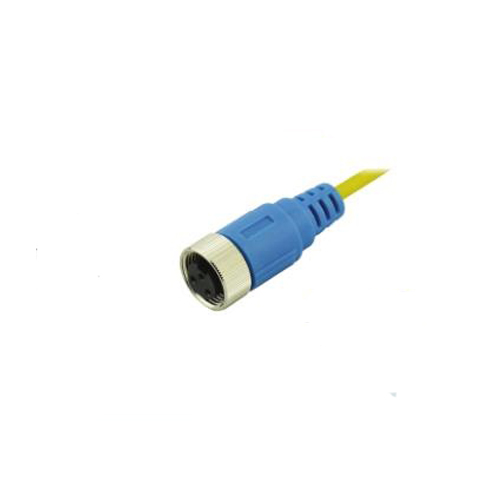

7-8 female plug
| series | category | technical parameter | Connection parameters | ||||||||
| working voltage〔V〕 | Operating current〔A〕 | Number of stitches 〔PIN〕 | protection | Cable outer diameter 〔mm〕 | Wiring form | specification | |||||
| Welded | Crimp type | Screw crimping | With shield | thread | |||||||
| MINI7/8" | MINI connector | 250V | 12A | 3 | IP67 | 6.0-10.0 | - | PG9/PG11 | |||
| 250V | 9A | 4/5 | IP67 | 6.0-10.0 | - | PG9/PG11 | |||||
| MINI cable connector | 300V | 10A | 3 | IP67 | 5.8 | - | |||||
| 600V | 13A | 3 | IP67 | 10.2 | - | ||||||
| 300V | 7A | 4 | IP67 | 6.3 | - | ||||||
| 600V | 10A | 4 | IP67 | 10.2 | - | ||||||
| 300V | 6A | 5 | IP67 | 6.8 | - | ||||||
| 600V | 8A | 5 | IP67 | 10.2 | - | ||||||
